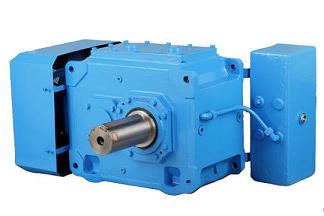

  • B Series Right Angle Gearbox 2

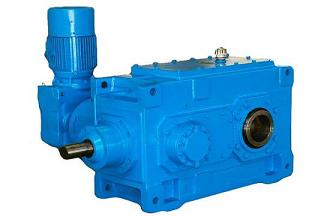

  • B Series Right Angle Gearbox 3

B Series Right Angle Gearbox

  • Power: 4-5000kw
  • Ratio: 1.25-450
  • Input Speed: 1450RMP, 960RMP, 710RMP
  • Torque: 2300-900000N.m
  • Transmission stage: 1 stage, 2 stage, 3 stage, 4 stage
  • Mounting position: Vertical, horizontal
Inquiry
B Series Right Angle Gearbox

Technical Data:
1. Power: 4-5000kw
2. Ratio: 1.25-450
3. Input Speed: 1450RMP, 960RMP, 710RMP
4. Torque: 2300-900000N.m
5. Transmission stage: 1 stage, 2 stage, 3 stage, 4 stage
6. Mounting position: Vertical, horizontal

Commercial information:
1. MOQ: 1 set
2. Packing method: Polywood
3. Delivery lead time: 10-30 days
4. Payment terms: FOB, CIF, CFR
5. Payment method: T/T or L/C
6. Shipping port: Shanghai or Ningbo

Material:
Housing: HT250 cast iron
Gear: 20CrMnTi H, high grade allo with carburization, surface hardness: 58-62HRC, center hardness: 33-48HRC
Grinding precision grade: ISO1328-1: 1995 class 5-6, surfaceness: 0.8, carburization depth: 0.6-1.5mm
Bearing: 42CrMo

Warranty: 12 months

Application Industries:
Modular, high standardization, components of few specifications and models.
Wide power, torque, speed ratio covering range.
The products are widely applied in electricity, coal, cement, metallurgy, harbor, agriculture, shipping, lifting, environment protection, stage, logistic, weaving, paper making, light industry, plastics and other regions.

B Series Right Angle Gearbox Design

right angle gearbox design
