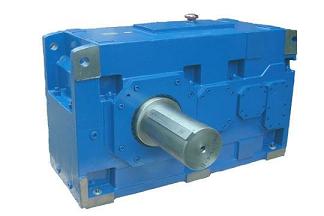

  • H Series Industrial Gearbox 2

H Series Industrial Gearbox

  • Power: 4-5000kw
  • Ratio: 1.25-450
  • Input Speed: 1450RMP, 960RMP, 710RMP
  • Torque: 2300-900000N.m
  • Transmission stage: 1 stage, 2 stage, 3 stage, 4 stage
  • Mounting position: Vertical, horizontal
Inquiry
H series heavy duty parallel shaft helical industrial gearbox

Technical data:
1. Power: 4-5000kw
2. Ratio: 1.25-450
3. Input Speed: 1450RMP, 960RMP, 710RMP
4. Torque: 2300-900000N.m
5. Transmission stage: 1 stage, 2 stage, 3 stage, 4 stage
6. Mounting position: Vertical, horizontal

Commeicial information:
1. MOQ: 1 set
2. Packing method: Polywood
3. Delivery lead time: 10-30 days
4. Payment terms: FOB, CIF, CFR
5. Payment method: T/T or L/C
6. Shipping port: Shanghai or Ningbo

Material:
Housing: HT250 cast iron
Gear: 20CrMnTi H, high grade allo with carburization, surface hardness: 58-62HRC, center hardness: 33-48HRC
Grinding precision grade: ISO1328-1: 1995 class 5-6, surfaceness: 0.8, carburization depth: 0.6-1.5mm
Bearing: 42CrMo

Warranty: 12 months

Applications:
The products are widely applied in electricity, coal, cement, metallurgy, harbor, agriculture, shipping, lifting, environment protection, stage, logistic, weaving, paper making, light industry, plastics and other regions.

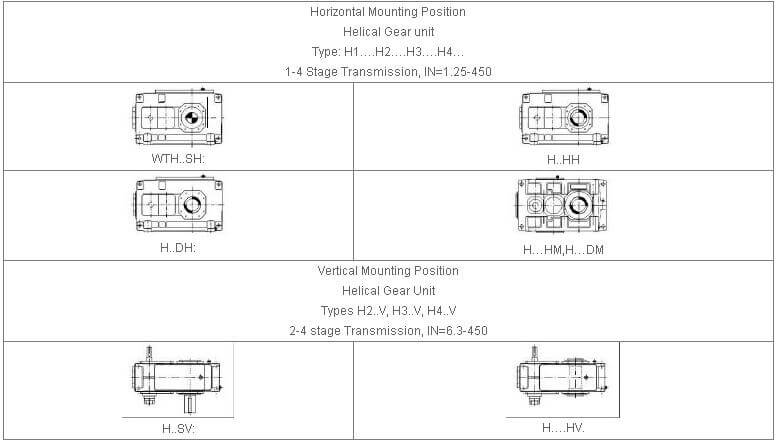

H series heavy duty parallel shaft industrial gearbox Design

industrial gearbox design
