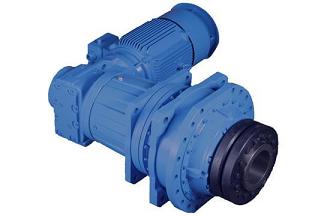

  • P Series Planetary Gearbox 3

P Series Planetary Gearbox

  • Power: 0.4-9551kw
  • Ratio: 1.25-4000
  • Input Speed: 1450RMP, 960RMP, 710RMP
  • Torque:  22000-2600000N.m
  • Transmission stage: 2 stage, 3 stage
  • Mounting position: Vertical, horizontal
Inquiry
P Series Planetary Gearbox

Technical data:
1. Power: 0.4-9551kw
2. Ratio: 1.25-4000
3. Input Speed: 1450RMP, 960RMP, 710RMP
4. Torque: 22000-2600000N.m
5. Transmission stage: 2 stage, 3 stage
6. Mounting position: Vertical, horizontal

Commeicial information:
1. MOQ: 1 set
2. Packing method: Polywood
3. Delivery lead time: 10-30 days
4. Payment terms: FOB, CIF, CFR
5. Payment method: T/T or L/C
6. Shipping port: Shanghai or Ningbo

Material:
Housing: HT250 cast iron
Gear: 20CrMnTi H, high grade allo with carburization, surface hardness: 58-62HRC, center hardness: 33-48HRC
Grinding precision grade: ISO1328-1: 1995 class 5-6, surfaceness: 0.8, carburization depth: 0.6-1.5mm
Bearing: 42CrMo

Warranty: 12 months

Applications:
The products are widely applied in electricity, coal, cement, metallurgy, harbor, agriculture, shipping, lifting, environment protection, stage, logistic, weaving, paper making, light industry, plastics and other regions.

P series planetary gearbox Design

planetary gearbox design
