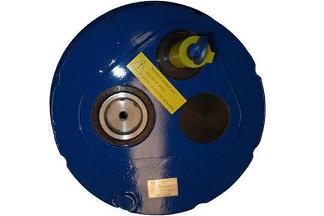

  • XG Series Shaft Mounted gearbox 3

XG Series Shaft Mounted gearbox

  • Rated Power:1.1kW~193kW
  • Rated Torque:180~17000N.m
  • Input Speed:1400, 900, 500r/min
  • Output Speed:25~300r/min
  • Ratio:5,7,10,…20,25,31
  • Installation Form:Hanging Shaft Mounted
  • Backstop:Optional
Inquiry
XG Series Shaft Mounted Gearbox

Components:
1. Housing: Nodular Cast Iron(Ductile Iron) QT600
2. Gears Profile: Hardened Helical Gears
3. Gears Material 20CrMnTi
4. Gears Processing Carburizing, Grinding
5. Gears Hardness: Surface Hardness: HRC58-62, Inner Hardness: HBS156-207
6. Gears Accuracy: 6 Class
7. Shafts Material: 40Cr
8. Input Configurations: Keyed Solid Shaft Input IEC Normalized Motor Flange
9. Output Configurations: Keyed Hollow Shaft Output
10. Oil Seal: TAIWAN SOG
11. Bearings: NSK, SKF, FAG, HRB, ZWZ, LYC
12. Spare Parts: Torque arm, Optional Backstop

Features:
1. Absolute reliability and low maintenance for the quarry and mine applications
2. Sturdy ductile iron housing suitable for outdoor installation
3. Up to three optional output shaft bore diameters
4. Output shaft rotation in two directions: clockwise(Default) and counterclockwise(Customized)
5. Optional backstop for all models to prevent backdriving in case of incline conveyors
6. Dimensions are same with Bonfiglioli
7. Double lips oil seal combines the functions of seal and dust-proof
8. Widely used in belt conveyor and pulley drive system

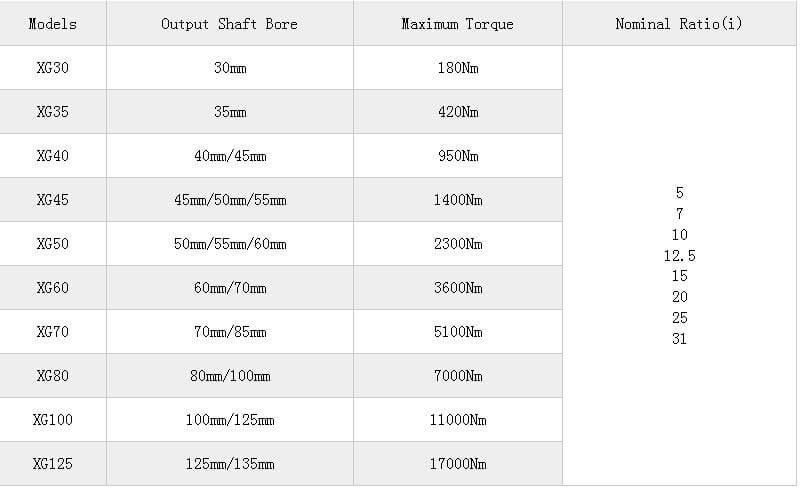

Parameters:
shaft mounted gearbox
Applications:
Material Handling Industry, Quarrying and Mining Industry
Belt Conveyors Mechanical Transmission:
Mining Equipment, Concrete Batching Plant, Stone Crushers, Sand Making Production Line

Installation:

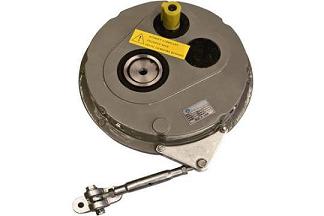

Hanging Shaft Mounted With Torque Arm
Belt Conveyor & Pulley Drive System: XG, Electric Roller, Pulley, Electric Motor, Torque Arm
