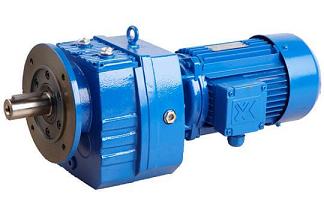

  • R Series Helical Geared Motor 2

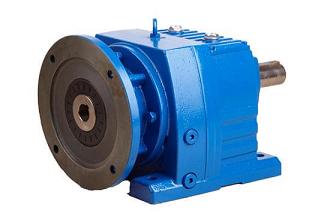

  • R Series Helical Geared Motor 3

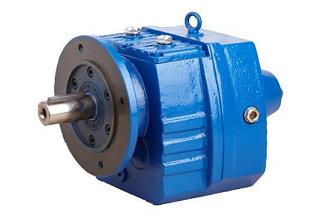

  • R Series Helical Geared Motor 4

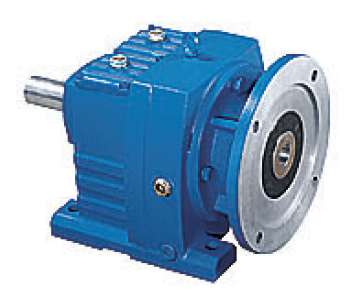

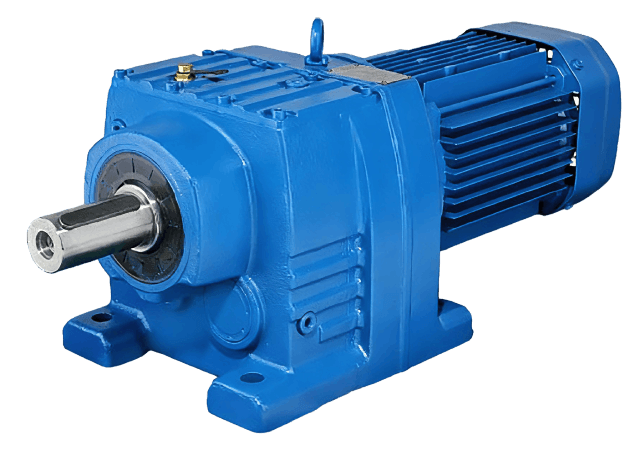

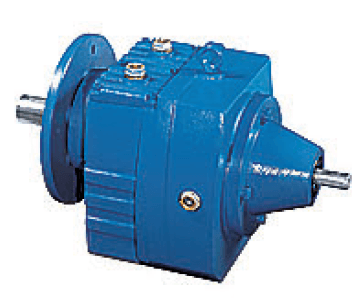

R Series Helical Geared Motor

  • Power: 0.12-160kw
  • Ratio: 1.6-264
  • Input Speed: 1450RMP, 960RMP, 710RMP
  • Torque: 130-18000N.m
  • Transmission stage: 1 stage, 2 stage, 3 stage.
  • Mounting position: Foot mounted,flange mounted.
Inquiry

R series inline helical geared motor

Technical data:
1. Power: 0.12-160kw
2. Ratio: 1.6-264
3. Input Speed: 1450RMP, 960RMP, 710RMP
4. Torque: 130-18000N.m
5. Transmission stage: 1 stage, 2 stage, 3 stage.
6. Mounting position: Foot mounted,flange mounted,pug mill

Commeicial information:
1. MOQ: 1 set
2. Packing method: Polywood
3. Delivery lead time: 7-25 days
4. Payment terms: FOB, CIF, CFR
5. Payment method: T/T or L/C
6. Shipping port: Shanghai or Ningbo

Material:
Housing:  Aluminium or HT250 cast iron.
Gear: 20CrMnTi H, high grade allo with carburization, surface hardness: 58-62HRC, center hardness: 33-48HRC
Grinding precision grade: ISO1328-1: 1995 class 5-6, surfaceness: 0.8, carburization depth: 0.6-1.5mm
Bearing: 42CrMo

Warranty: 12 months

Applications:
The products are widely applied in electricity, coal, cement, metallurgy, harbor, agriculture, shipping, lifting, environment protection, stage, logistic, weaving, paper making, light industry, plastics and other regions

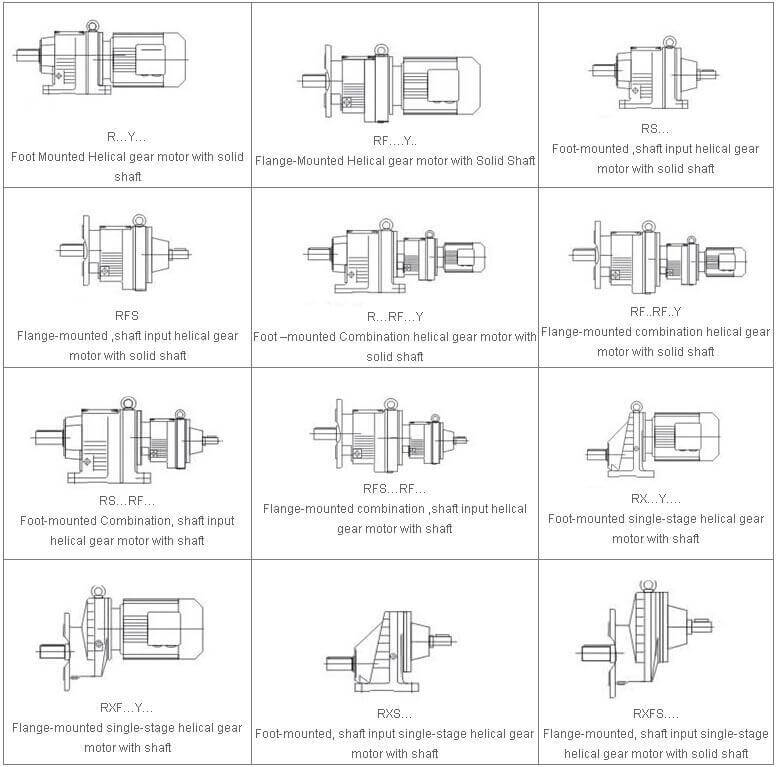

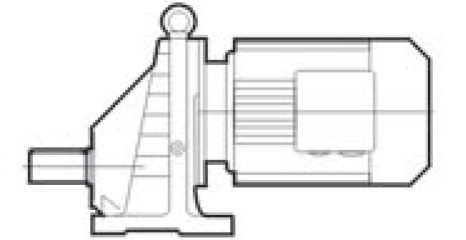

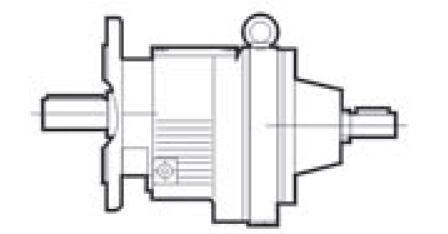

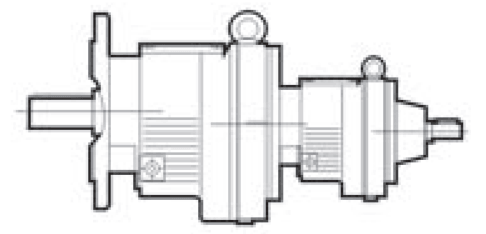

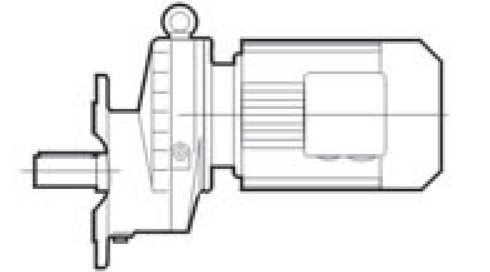

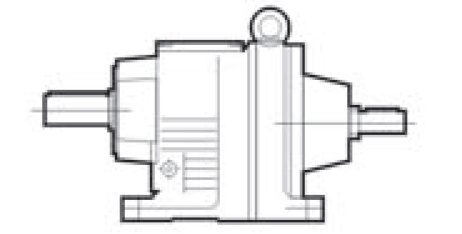

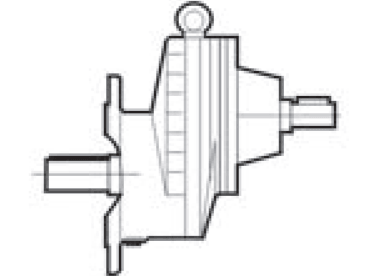

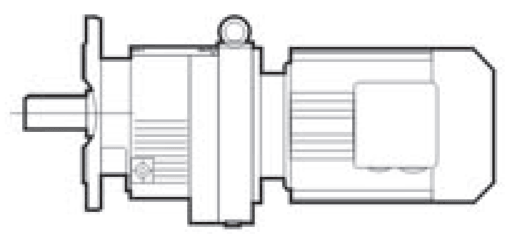

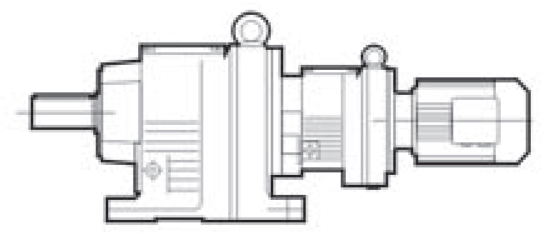

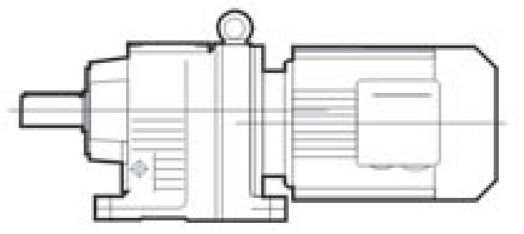

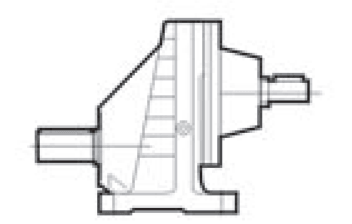

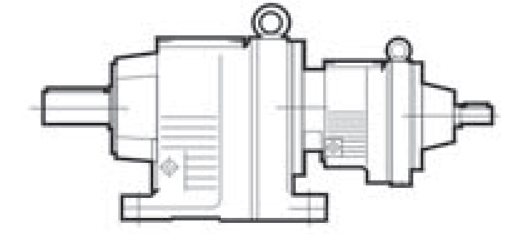

R series inline helical geared motor Design

inline helical geared motor design

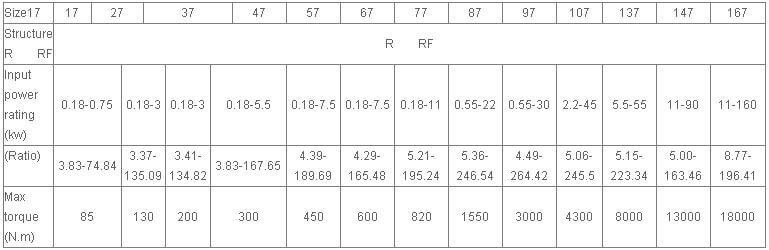

Input power rating and Max. Torque of R series inline helical geared motor

inline helical geared motor torque
