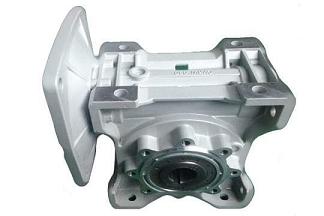

  • NMRV Series Worm Gear Reducer 2

RV Series Worm Gear Reducer

  • Power: 0.12-7.5 KW
  • Ratio: 6-80
  • Input Speed: 1450RMP, 960RMP, 710RMP
  • Torque:  49-9100N.m
  • Transmission stage: 2 stage, 3 stage
  • Mounting position: Vertical, horizontal
Inquiry

RV series worm gear reducer

Technical data:
1. Power: 0.12-7.5 KW
2. Ratio: 6-80
3. Input Speed: 1450RMP, 960RMP, 710RMP
4. Torque: 49-9100N.m
5. Transmission stage: 2 stage, 3 stage
6. Mounting position: Vertical, horizontal

Commeicial information:
1. MOQ: 1 set
2. Packing method: Polywood
3. Delivery lead time: 20-25 days
4. Payment terms: FOB, CIF, CFR
5. Payment method: T/T or L/C
6. Shipping port: Shanghai or Ningbo

Material:
Housing: Aluminium or HT250 cast iron.
Gear: 20CrMnTi H, high grade allo with carburization, surface hardness: 58-62HRC, center hardness: 33-48HRC
Grinding precision grade: ISO1328-1: 1995 class 5-6, surfaceness: 0.8, carburization depth: 0.6-1.5mm
Bearing: 42CrMo

Warranty: 12 months

Applications:
The products are widely applied in electricity, coal, cement, metallurgy, harbor, agriculture, shipping, lifting, environment protection, stage, logistic, weaving, paper making, light industry, plastics and other regions

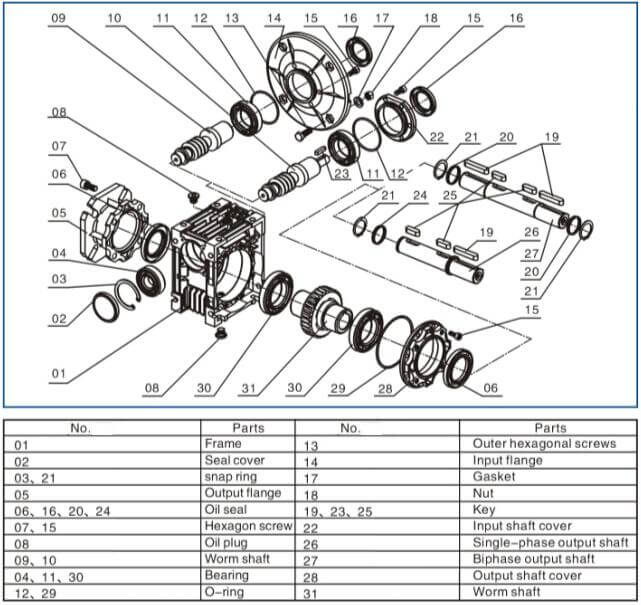

RV series worm gear reducer Design

worm gear reducer design
